All Your Property Plans, Sorted Under One Roof.
From planning drawings to party wall matters, land registry compliance to CAD design — Surv Design provides the expertise you need, all in one place.
Making Property Projects Simple
At SurvDesign, we make property projects simple. From planning drawings and party wall surveying to land registry compliance and CAD design, our in-house team delivers everything you need with clarity, speed, and professionalism. Whether you’re extending your home, managing a property portfolio, or preparing legal documentation, SurvDesign provides expert support every step of the way.
Architectural Services
We provide planning drawings for home extensions, loft conversions, and new builds. Every plan is prepared to meet local authority requirements and tailored to your property’s needs. From the initial survey through to submission, we ensure accuracy, compliance, and a smooth process.
Party Wall Surveying
If your project involves work close to a neighbouring property, you may need a Party Wall Agreement. SurvDesign can act for either the building owner or adjoining owner, guiding you through the Party Wall etc. Act 1996. Our team manages the entire process, from notices to awards, helping avoid disputes and ensuring legal compliance.
Land Registry Compliance
We prepare Land Registry–compliant lease plans and title plans, suitable for sales, leases, and registrations. Our team visits your property, captures the necessary detail, and delivers precise, compliant drawings ready for submission to HM Land Registry.
CAD Design Services
We provide professional CAD drawings, including existing plans, elevations, and sections. Whether you require accurate measured drawings for design, construction, or records, our team uses the latest CAD software to deliver fast and reliable results.
What Is an Architectural Drawing?
Architectural drawings turn ideas into precise, buildable information. They communicate scale, layout, structure, fire safety, insulation, services and finishes so that planners, building control, contractors and clients are aligned throughout a project.
Planning vs Building Regulations Drawings
Planning drawings focus on how a proposal looks and fits its surroundings. They typically include site location plans, existing/proposed floor plans, elevations and a brief design statement to secure consent.
Building Regulations plans show how the proposal will be constructed to meet UK Building Regulations (structure, fire, thermal, ventilation, drainage and accessibility). These include notes, sections and details used for approval, tender and construction.
Our Professional Surveying and Drawing Services
Planning drawings
Clear, policy-aligned plans, elevations and site layouts for householder and full applications, lawful development certificates and permitted development checks. We coordinate factors like heritage, trees and overlooking to streamline approval.
Building Regulations plans
Regulation-ready GA plans, sections, details and specification notes covering structure, fire strategy, insulation build-ups, ventilation, drainage and services. Prepared for Building Control submission and contractor pricing.

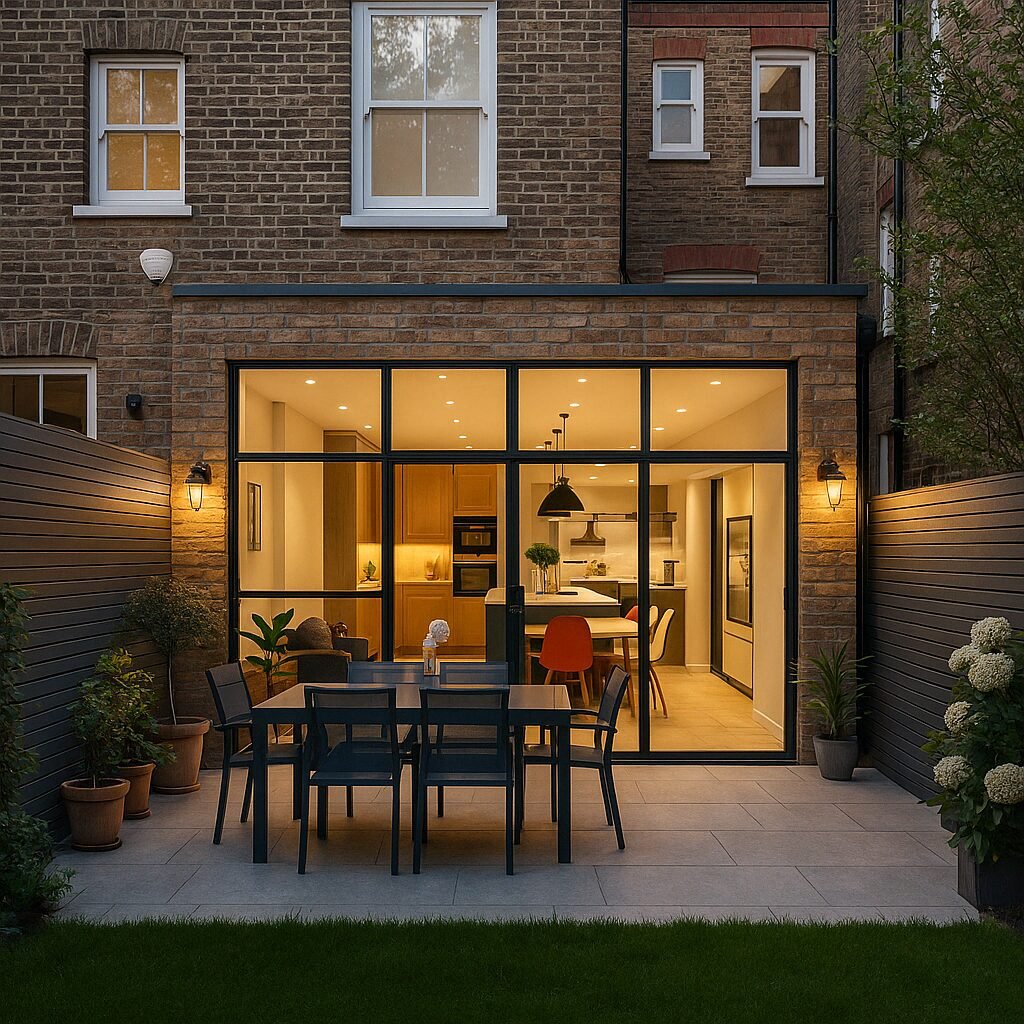

Extension & loft conversion plans
Optimised layouts for single and double-storey extensions, side returns and rear infills, plus dormer and hip-to-gable loft designs. We balance daylight, head-height and stair compliance to unlock usable space.
Party wall surveyor services
Notices, schedules of condition and awards for building and adjoining owners under the Party Wall etc. Act 1996. Our drawings support smooth agreements and reduce on-site disputes.
Land Registry compliant lease & title plans
Accurate lease and title plans prepared to HM Land Registry standards, showing demise, rights of way and common parts. Ideal for sales, leases and boundary clarification.
CAD design (2D/3D, conversions, MEP, electrical)
Production-ready CAD in DWG/PDF: 2D drafting, 3D massing, scan-to-CAD conversions, space planning, plus coordinated MEP/electrical layouts for fit-outs and refurbishments.
