Land Registry Compliant Plans Southend-on-Sea
Fixed Fee Land Registry Plans Prepared In as Little as 24 Hours
1,000+ Accepted Plans
(Because HM Land Registry Compliance Isn’t Guesswork)
Avoid rejections and last-minute delays—our plans are drawn to current HMLR guidance, clearly edged and scaled, and delivered fast as solicitor-ready PDFs.
Avoid Delays. Avoid Rejections. Using Our 3-Step Process
The Land Registry isn’t forgiving — one small mistake and your plans go straight back, wasting weeks and piling on costs. That’s why we’ve stripped the process down to four clear steps that get your plans accepted first time, so you can hit deadlines without the drama.
We Capture Your Property (Properly)
We’ll carry out a LiDAR scan of your property for millimetre accuracy. In some cases, we can even work directly from existing floor plans you already have
We Produce Your Compliant Plan
Within 24-48 hours of the scan, we deliver a Land Registry compliant plan that meets every requirement — clear, accurate, and ready to submit.
Your Solicitor Submits. You Relax.
We pass the finished plan to your solicitor, who submits it to HM Land Registry. With over 1,000 approvals under our belt, you can be confident yours will be next.
1,000+ Approvals. Countless Happy Clients
“Property transactions often require a plan that meets HM Land Registry’s mapping and presentation standards. SurvDesign prepares accurate, clearly annotated lease and title plans that show boundaries, demised areas and rights of way so applications are accepted first time.”
What Is a Land Registry Compliant Plan?
A plan that follows HM Land Registry (HMLR) guidance on scale, orientation, colouring and clarity so the legal extent of property can be recorded unambiguously.
Lease plan vs title plan
A lease plan defines the demised premises within a building or estate and is referenced in the lease. A title plan illustrates the registered title extent for freehold/leasehold ownership.
Lease plan vs title plan
A lease plan defines the demised premises within a building or estate and is referenced in the lease. A title plan illustrates the registered title extent for freehold/leasehold ownership.

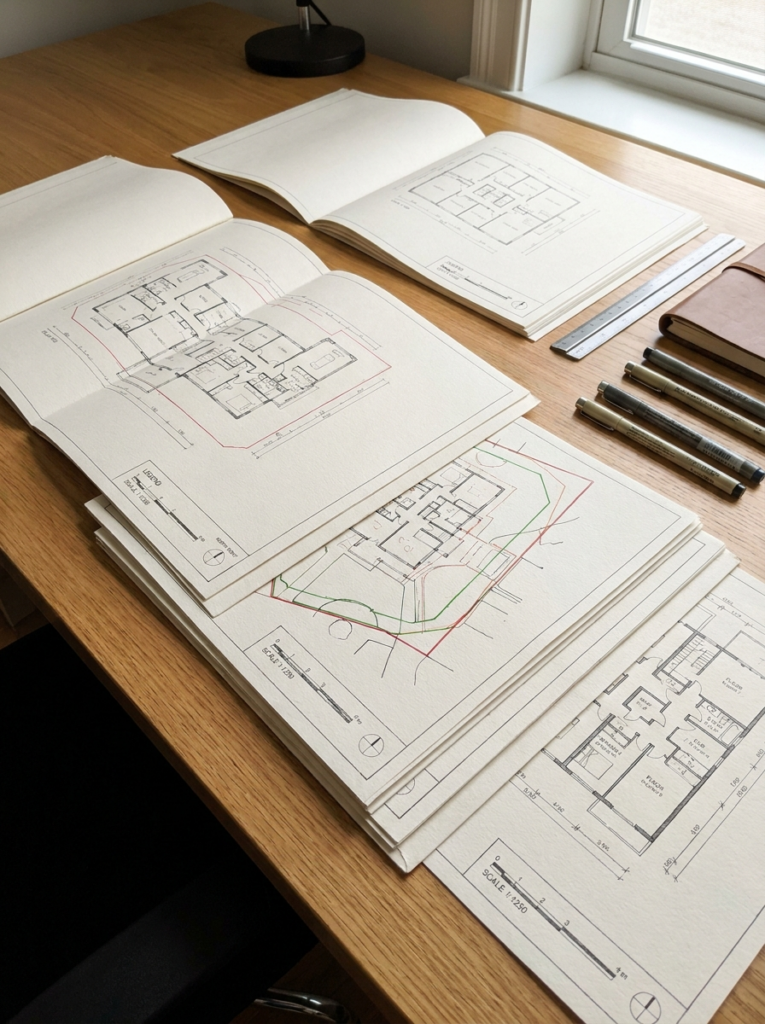

What Your Plan Will Show
Boundaries & scale
A clearly edged boundary at an appropriate scale (typically 1:100 to 1:500 for site plans and 1:100 or 1:200 for internal layouts) with dimensions where needed.
Demised area, common parts & rights
Colour‑coded areas for demised premises, common parts, rights of way and areas reserved. Notes explain any shared structures or retained parts.
Access, parking & outbuildings
Marked entrances/exits, bin/bike stores, parking bays, garages and external spaces within or outside the demise.
When You Need One
New leases & sales
Required for granting or varying leases, especially where the extent differs from existing records.
Transfers of part & split titles
Needed when dividing land or buildings into multiple titles or altering boundaries.
Resolving boundary questions
Helpful evidence in boundary clarifications and deed updates.
Our Process
Information gathering & base mapping
We review deeds/heads of terms and obtain suitable base mapping.
Site check and measurements
Where necessary we visit to confirm layout and features; otherwise we work from accurate information supplied.
Draft issue & revisions
You’ll receive a draft plan to confirm colouring, labels and legal extent with your solicitor/agent.
Final plan & submission support
We issue the final plan (PDF) for execution with the lease/transfer and can support HMLR queries if raised.
Why Choose SurvDesign
Accurate, HM Land Registry‑ready
Plans prepared by experienced technicians following current HMLR practice guidelines.
Clear colouring & annotations
Legible, solicitor‑friendly plans that reduce requisitions.
Fast turnaround & fixed pricing
Transparent scopes and timelines so transactions stay on track.
Get a Quote for Your Land Registry Plan
Share the address, a marked sketch of the area to be included and any legal documents. We’ll provide a fixed quote and timescales.
Fixed Fee Land Registry Compliant Plans Southend on Sea
Lease plans, title plans and other Land Registry compliant plans prepared clearly, accurately and on a fixed fee basis — with precision survey data where needed and turnaround in as little as 24 hours after survey.
If you need Land Registry compliant plans Southend-on-Sea, chances are you do not want a long lecture. You want the right plan, prepared properly, without delays, confusion or avoidable back-and-forth.
At Surv Design Associates, we prepare Land Registry compliant plans Southend-on-Sea for a wide range of residential and commercial property matters, including lease plans, title plans, transfer plans and plans required in support of applications to HM Land Registry.
Where needed, we support the process with LiDAR measured surveys, drone surveys and topographical survey data to help ensure accuracy from the outset. And because these matters are often time-sensitive, we can produce fixed fee Land Registry plans in as little as 24 hours after our survey.
We work with property owners, solicitors, conveyancers, landlords, leaseholders, freeholders and developers in Southend-on-Sea and nearby areas including Southchurch, Thorpe Bay, Shoeburyness and Prittlewell.
Our approach is simple: accurate plans, fixed fees, fast turnaround, and a service designed to help you get the job done properly.
Land Registry Compliant Plans Southend-on-Sea Prepared With Accuracy in Mind
When a plan is needed for Land Registry purposes, clarity matters. Accuracy matters. And if the land or property cannot be identified properly, delays usually follow.
HM Land Registry’s main guidance on plan preparation is Practice Guide 40, especially supplement 2, which is specifically about preparing plans for Land Registry applications.
That is exactly what we aim to avoid.
We prepare plans that are designed to support Land Registry-related applications clearly and professionally, with a focus on accuracy, legibility and practical use. And where the job calls for it, we do not rely on rough sketches, assumptions or guesswork. We use LiDAR scanners, drone surveys and topographical survey information to help ensure precision at every stage.
Our main USP
We prepare Land Registry compliant plans on a fixed fee basis, using precise measured survey information where needed.
Our fees are agreed upfront, we use LiDAR measured surveys, drone surveys and topographical survey data to help ensure precision at every stage, and we can often deliver plans in as little as 24 hours after survey.
Who We Help
We provide Land Registry compliant plans Southend-on-Sea for:
- solicitors
- conveyancers
- landlords
- leaseholders
- freeholders
- property owners
- developers
- agents and other property professionals
Some clients come to us knowing exactly what they need. Others simply know that a solicitor or conveyancer has asked for a compliant plan.
Either way, we help make the process straightforward.
What Types of Land Registry Plans Do We Prepare?
Lease Plans
We prepare HM Land Registry compliant lease plans Southend-on-Sea for new leases, lease variations and related property matters.
Title Plans
We prepare HM Land Registry compliant title plans Southend-on-Sea where a clear plan is needed to identify the land affected.
Transfer Plans
We prepare plans for transfers of part, boundary-related transactions and other registration matters.
Plans for Lease Variations
Where part of a property, demise or arrangement is changing, we can prepare updated plans to reflect the revised layout or extent.
Plans for Property Splits or Part Transfers
Where land or part of a building is being separated from a wider title, a clear supporting plan may be needed.
HM Land Registry Compliant Lease Plans Southend-on-Sea
Lease plans are one of the most common requests we deal with.
These are often needed for:
- new leases
- lease extensions
- lease variations
- sales of leasehold interests
- registration of leasehold property
HM Land Registry says you do not usually need to register leasehold land or property if there are 7 years or less on the lease when you take ownership, and that leases with more than 7 years remaining are generally within the compulsory registration regime.
If your solicitor, conveyancer or managing agent has asked for a lease plan, we can prepare one clearly and professionally.
And where the layout, extent or access arrangement needs to be captured properly, we can support the process with LiDAR measured survey data and other measured information to help ensure the finished plan reflects the property accurately.
Related page
- HM Land Registry Compliant Lease Plans Southend-on-Sea
HM Land Registry Compliant Title Plans Southend-on-Sea
HM Land Registry says the purpose of the title plan is to support the property description in the register by providing a graphic representation and identifying the general extent of the land in a registered title. It may also show other references affecting the title.
In practice, title plans are needed where land must be clearly identified in connection with a registration matter, transfer, boundary issue or related legal process.
We prepare title plans that are clear, practical and suitable for professional use.
Where required, we can support plan preparation with:
- LiDAR measured surveys
- drone surveys for roofs, elevations and hard-to-reach areas
- topographical survey information for site layout, levels and external features
That means the finished drawing is based on reliable site information, not assumption.
Related page
- HM Land Registry Compliant Title Plans Southend-on-Sea
Why Good Land Registry Plans Matter
A poor-quality plan is rarely a small problem.
If the land cannot be identified properly, or if the plan is unclear, you can end up with:
- delays
- requisitions
- extra correspondence
- additional legal costs
- frustration for everyone involved
HM Land Registry’s planning guidance exists precisely because the quality and clarity of the plan matters to the application.
Our job is to help reduce that risk by producing plans that are clear, accurate and prepared with the application in mind.
Precision at Every Stage
This is where we do things differently.
Not all Land Registry plans are prepared from the same standard of information. Some are produced from incomplete sketches, rough mark-ups or outdated drawings.
Where a job requires greater certainty, we can support plan preparation with:

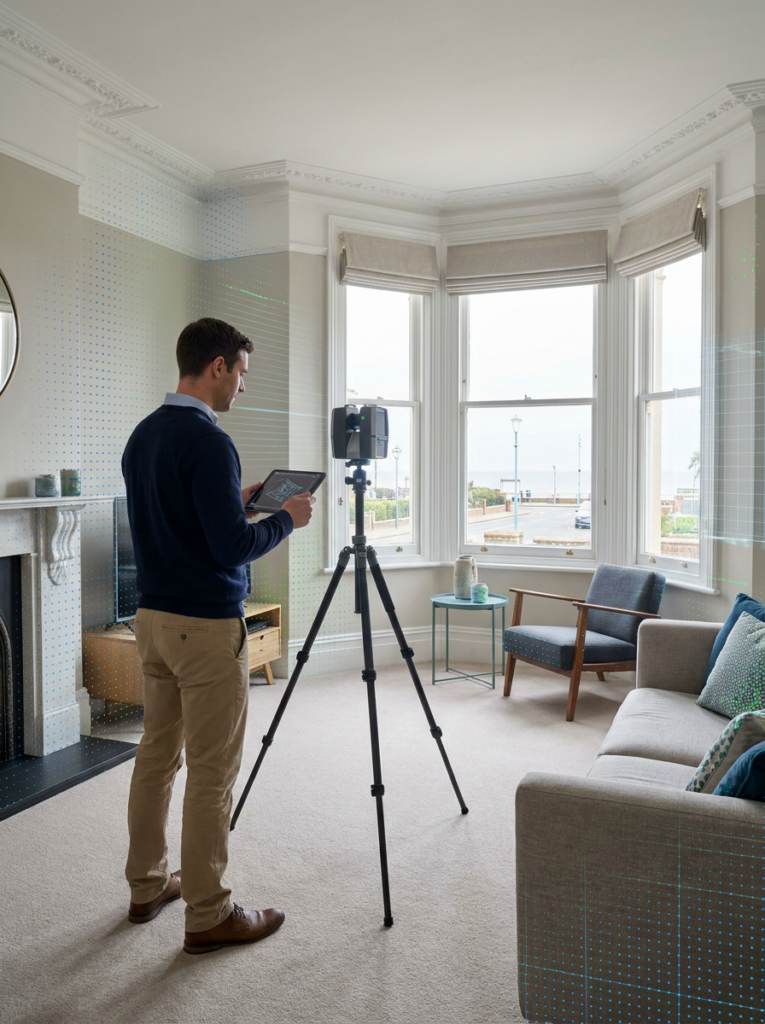

LiDAR Measured Surveys
Ideal for capturing accurate internal layouts and building dimensions.

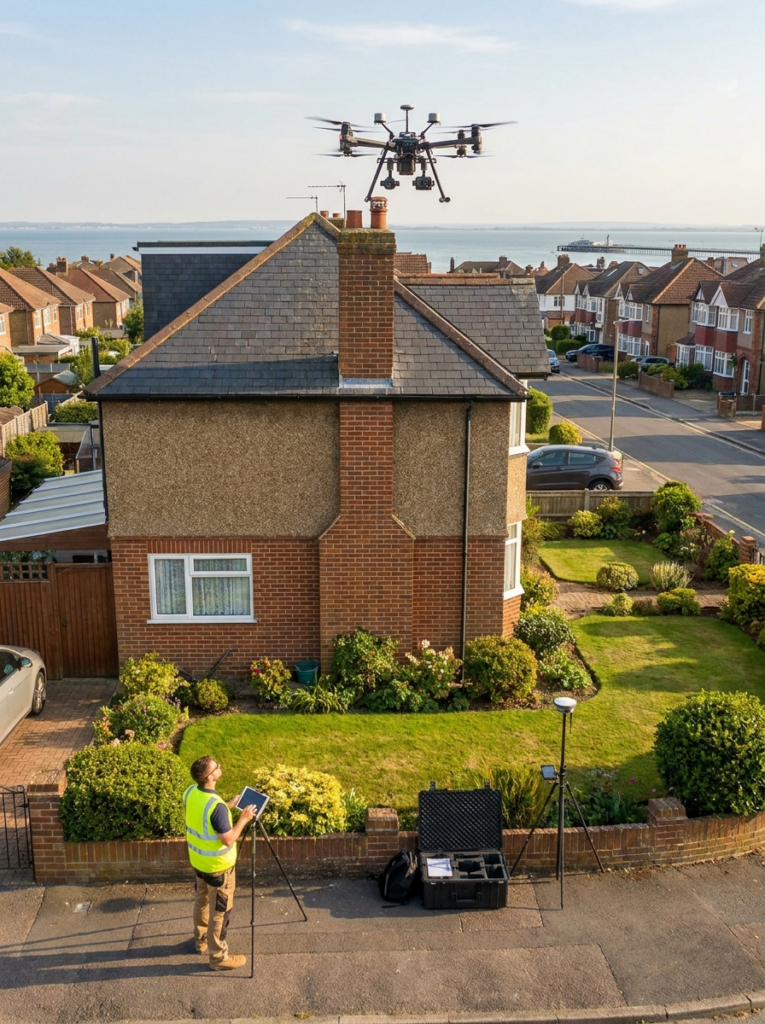

Drone Surveys
Useful for elevations, roofs and harder-to-access areas where visual accuracy matters.

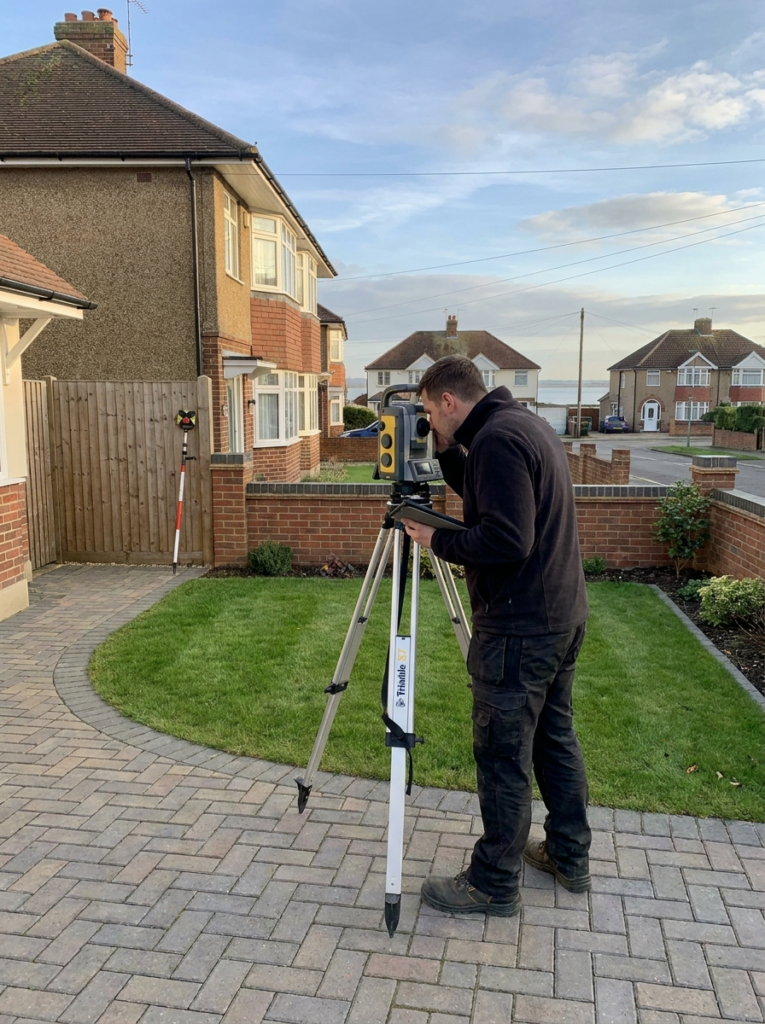

Topographical Surveys
Helpful where external layout, site features, boundaries and levels need to be understood clearly.
This helps ensure the final plan is based on reliable measured data wherever needed — which is a major advantage when clarity and precision matter.
Our Process for Land Registry Compliant Plans Southend-on-Sea
1. We Understand What Is Needed
We review the request and establish what type of plan is required.
2. We Gather the Right Information
That may involve working from existing documents, supplied drawings, title information, or carrying out LiDAR measured surveys, drone surveys or topographical surveys where greater site accuracy is needed.
3. We Prepare the Plan
We prepare the drawing clearly and professionally, with the aim of supporting the intended Land Registry-related application.
4. Fast Delivery
In many cases, we can issue the completed fixed fee plan in as little as 24 hours after survey, helping reduce delay and keep the matter moving.
Why Clients Choose Us for Land Registry Compliant Plans Southend-on-Sea
Fixed Fees Agreed Upfront
No hidden extras. No vague pricing. No surprises later.
Fast Turnaround
We can often produce fixed fee Land Registry plans in as little as 24 hours after survey, helping keep property transactions and legal matters moving.
Precision Matters
We use LiDAR measured surveys, drone surveys and topographical survey information where required to help ensure the finished plan is based on reliable site data, not guesswork.
Plans Prepared Properly
We focus on clear, accurate plan preparation designed to support the relevant application.
Suitable for Professional Use
We regularly prepare plans for property owners, solicitors, conveyancers, landlords, developers and other property professionals.
Common Reasons Clients Need Land Registry Compliant Plans Southend-on-Sea
We regularly help with:
- new lease plans
- lease variations
- title plans
- transfer plans
- part transfers
- property splits
- registration-related plan requirements
- solicitor and conveyancer requests
- landlord and leaseholder matters
So whether you are dealing with a flat in Southend-on-Sea, a property in Thorpe Bay, a legal matter in Southchurch or a transaction in Shoeburyness, the priority is usually the same: get the right plan prepared clearly, accurately and without delay.
FAQ: Land Registry Compliant Plans Southend-on-Sea
What is a Land Registry compliant plan?
It is a plan prepared to support a Land Registry-related application or transaction, with the land or property shown clearly enough for the intended purpose. HM Land Registry’s main plan preparation guidance is in Practice Guide 40, especially supplement 2.
Do I need a lease plan or a title plan?
That depends on the matter in hand. A solicitor or conveyancer will often tell you what is needed. If not, we can usually help identify the most likely plan type from the transaction details.
What is a lease plan?
A lease plan is a plan used to identify the premises included within a lease. It is commonly needed for new leases, leasehold registration, and lease-related changes.
What is a title plan?
HM Land Registry says the title plan supports the property description in the register and shows the general extent of the land in the registered title.
Can you prepare plans for solicitors and conveyancers?
Yes. We regularly prepare plans for property owners and for professionals involved in transactions and registration matters.
Can you prepare a plan for a transfer of part?
Yes. We can prepare plans where part of a title or property needs to be clearly identified for legal or registration purposes.
How much do Land Registry compliant plans cost?
We provide fixed fee pricing, agreed upfront before work starts.
Do you offer measured surveys as well?
Yes. Where needed, we can support plan preparation with LiDAR measured surveys, drone surveys and topographical survey data.
Why does measured survey information matter?
Because the better the source information, the more accurate the finished plan is likely to be. Using proper survey data helps reduce the risk of confusion, delay and unnecessary revisions.
How quickly can you turn Land Registry plans around?
In many cases, we can prepare fixed fee Land Registry plans in as little as 24 hours after survey.
Are title boundaries exact?
Usually not in that absolute sense. HM Land Registry’s title plans generally show the general extent of the land rather than a precisely determined legal boundary in every case.
Can you help with unusual or more complex properties?
Yes. Where a property, site or layout is more complex, measured survey technology can be especially useful in helping ensure precision.
Looking for Land Registry Compliant Plans Southend-on-Sea?
If you need Land Registry compliant plans Southend-on-Sea, including lease plans, title plans or transfer plans, Surv Design Associates is here to help.
We provide clear, practical plan preparation on a fixed fee basis, supported by LiDAR measured surveys, drone surveys and topographical survey data where required, to help ensure precision at every stage.
And because speed often matters just as much as accuracy, we can often deliver plans in as little as 24 hours after survey.
That means better information, better plans, and a smoother process for you and the professionals handling the matter.
