Fixed Fee Land Registry Compliant Plans Benfleet
Benfleet includes bungalows, semis, detached family homes and small commercial properties. Each can create a slightly different Land Registry plan requirement.
Surv Design Associates prepares fixed fee lease plans, title plans, transfer plans and conveyancing plans across Benfleet and nearby South Benfleet, Thundersley, Hadleigh and Bowers Gifford. We work with homeowners, landlords, leaseholders, freeholders, solicitors, conveyancers, developers and agents.
If the transaction needs better site information than the existing drawings provide, we can use LiDAR measured surveys, drone surveys and topographical data. Completed plans can often be ready in as little as 24 hours after survey.
1,000+ Accepted Plans
(Because HM Land Registry Compliance Isn't Guesswork)
Avoid rejections and last-minute delays — our plans are drawn to current HMLR guidance, clearly edged and scaled, and delivered fast as solicitor-ready PDFs.
Benfleet Land Registry Plans: Our 3-Step Route to a Clear Drawing
We Capture Your Property (Properly)
We LiDAR scan Benfleet properties where accurate fresh measurements are needed, while suitable existing floor plans can be used when they already provide a reliable base.

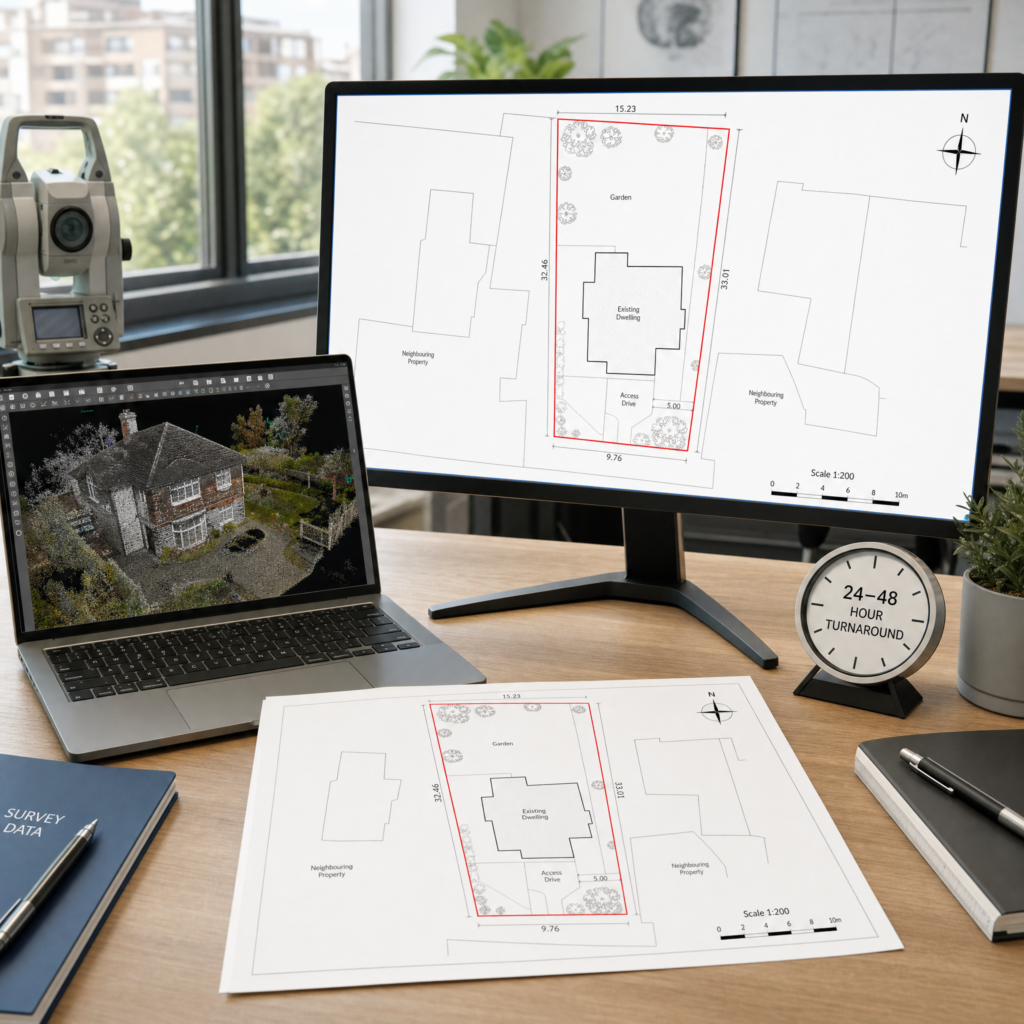

We Produce Your Compliant Plan
Within 24–48 hours of the scan, we deliver a Land Registry compliant plan that meets every requirement — clear, accurate, and ready to submit.
Your Solicitor Submits. You Relax.
We pass the finished plan to your solicitor, who submits it to HM Land Registry. With over 1,000 approvals under our belt, you can be confident yours will be next.
What Is a Land Registry Compliant Plan?
A plan that follows HM Land Registry (HMLR) guidance on scale, orientation, colouring and clarity so the legal extent of property can be recorded unambiguously.

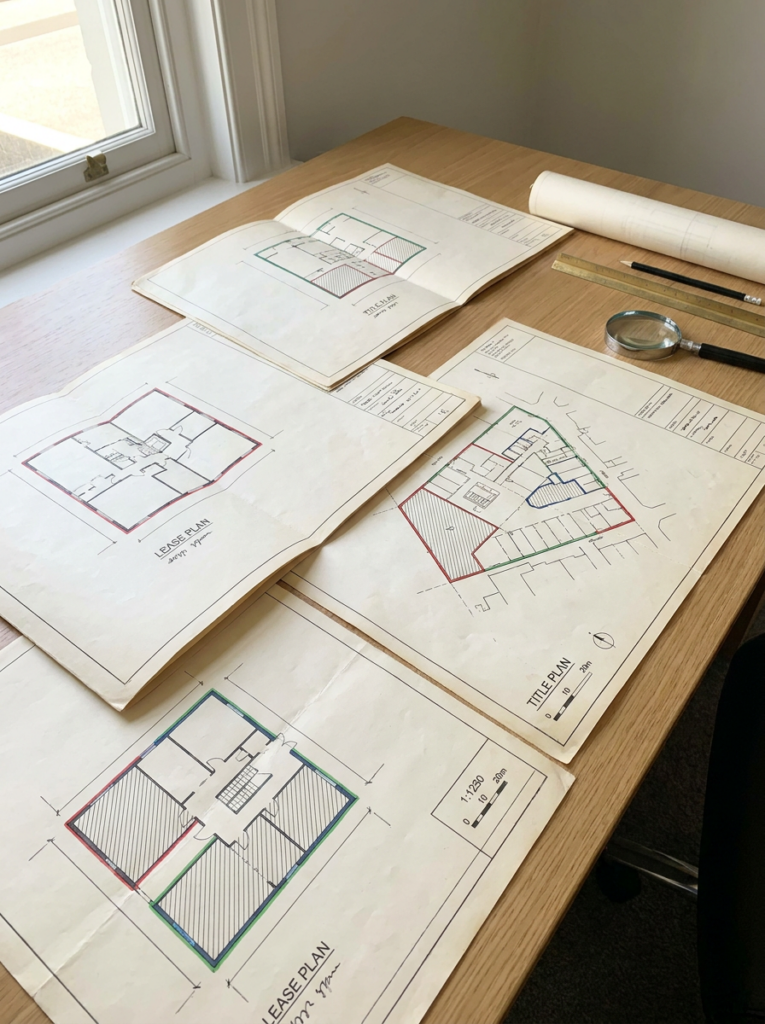

Lease Plan
A lease plan defines the demised premises within a building or estate and is referenced in the lease. It shows the extent of the leased area, common parts and any associated rights.
Title Plan
A title plan illustrates the registered title extent for freehold or leasehold ownership and supports the property description in the HM Land Registry register.
What Your Plan Will Show

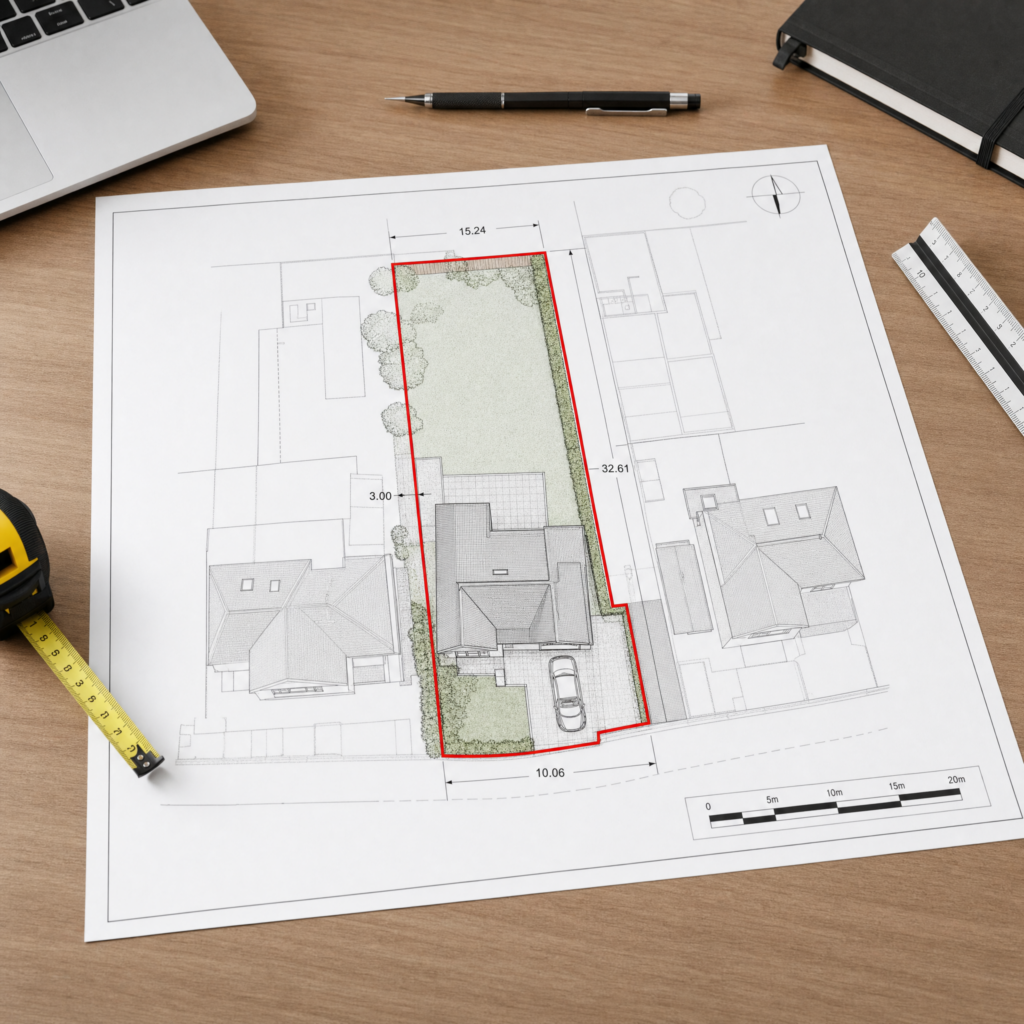

Boundaries & Scale
A clearly edged boundary at an appropriate scale (typically 1:100 to 1:500 for site plans and 1:100 or 1:200 for internal layouts) with dimensions where needed.

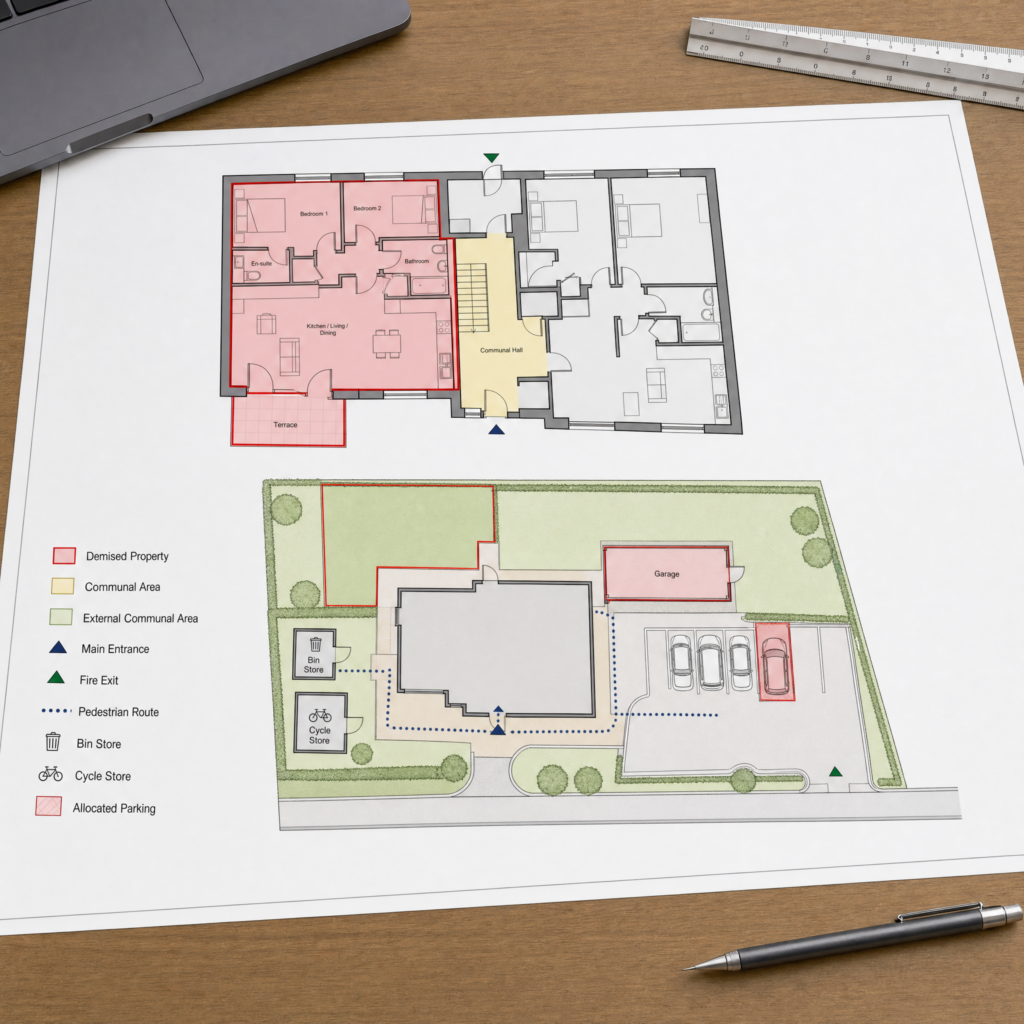

Demised Area, Common Parts & Rights
Colour-coded areas for demised premises, common parts, rights of way and areas reserved. Notes explain any shared structures or retained parts.
Access, Parking & Outbuildings
Marked entrances/exits, bin/bike stores, parking bays, garages and external spaces within or outside the demise.
When You Need a Land Registry Compliant Plan
New Leases & Sales
Required for granting or varying leases, especially where the extent differs from existing records.
Transfers of Part & Split Titles
Needed when dividing land or buildings into multiple titles or altering boundaries.
Resolving Boundary Questions
Helpful evidence in boundary clarifications and deed updates.
Land Registry Plans We Prepare in Benfleet
Lease Plans — for flats, maisonettes and converted residential property with parking, gardens or shared access.
Title Plans — for family-home plots, garden parcels, access strips and part transfers.
Transfer Plans — for transfers of part, garden parcels, split titles and changes to access or boundaries.
Plans for Lease Variations — revised drawings reflecting changes to the demise, parking, access or external space.
Plans for Property Splits or Part Transfers — for separating part of a building or land parcel from a larger registered title.

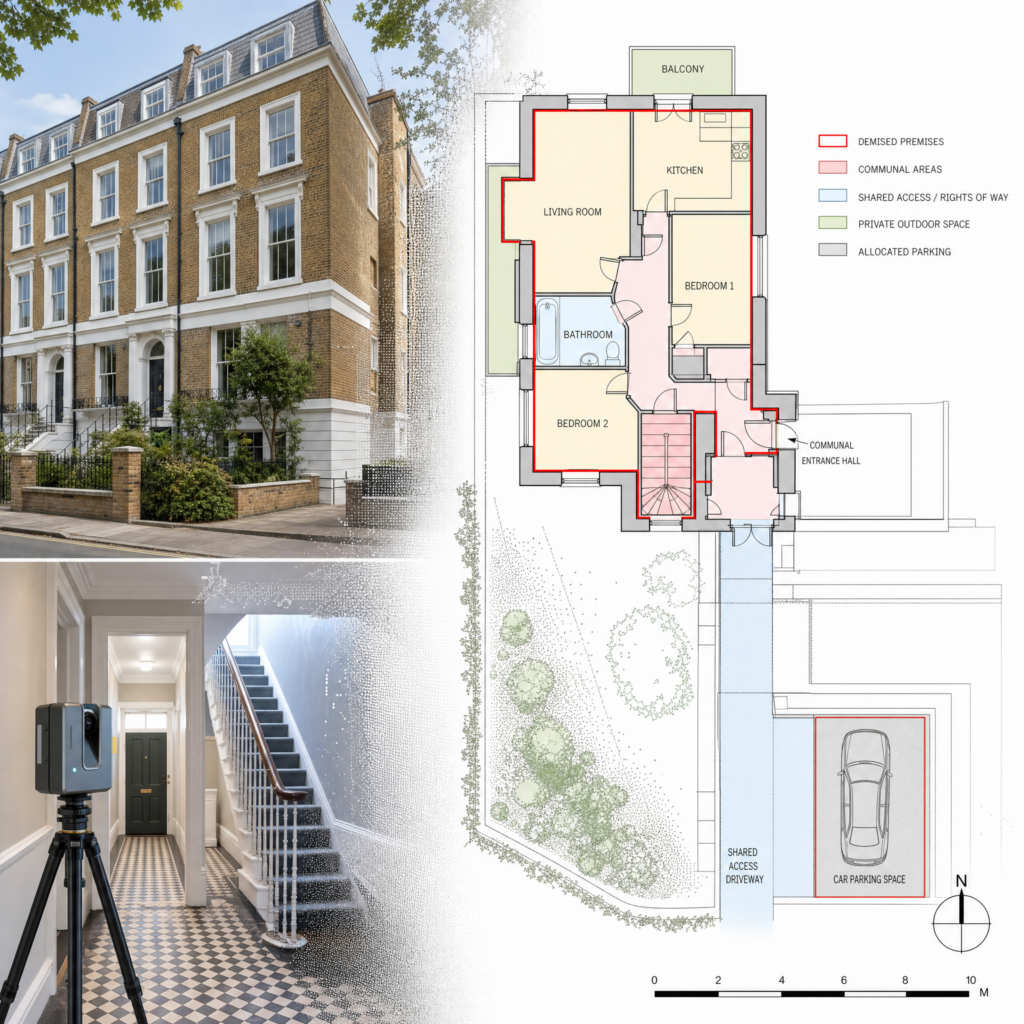

HM Land Registry Compliant Lease Plans Benfleet
Benfleet lease plan work can involve flats, maisonettes and converted residential property with parking, gardens or shared access.
They are often needed for:
- new leases
- lease extensions
- lease variations
- sales of leasehold interests
- registration of leasehold property
HM Land Registry says you do not usually need to register leasehold land or property if there are 7 years or less on the lease, and leases granted for a term of more than seven years are compulsorily registrable.
Where the existing drawings do not capture those arrangements properly, LiDAR measured survey data provides accurate internal dimensions for the final lease plan.

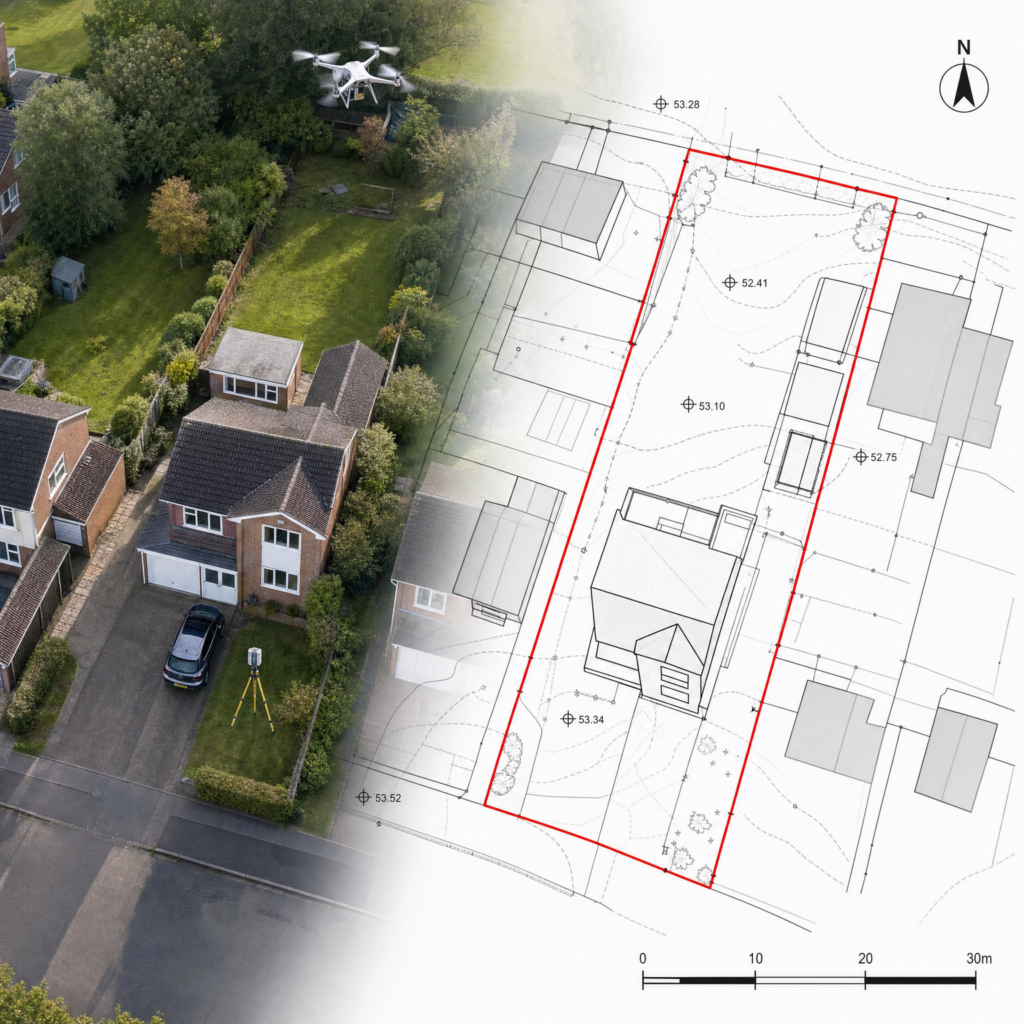

HM Land Registry Compliant Title Plans Benfleet
HM Land Registry says the purpose of the title plan is to support the property description in the register by providing a graphic representation and identifying the general extent of the land in a registered title.
In and around Benfleet, title plan work may involve family-home plots, garden parcels, access strips and part transfers, where the extent of the land needs to be shown clearly.
Where required, we support plan preparation with LiDAR measured surveys, drone surveys for roofs and elevations, and topographical survey information — so the finished drawing is based on reliable site information, not assumption.
Precision at Every Stage
Not all Land Registry plans are prepared from the same standard of information. Where a job requires greater certainty, we support plan preparation with measured survey technology.

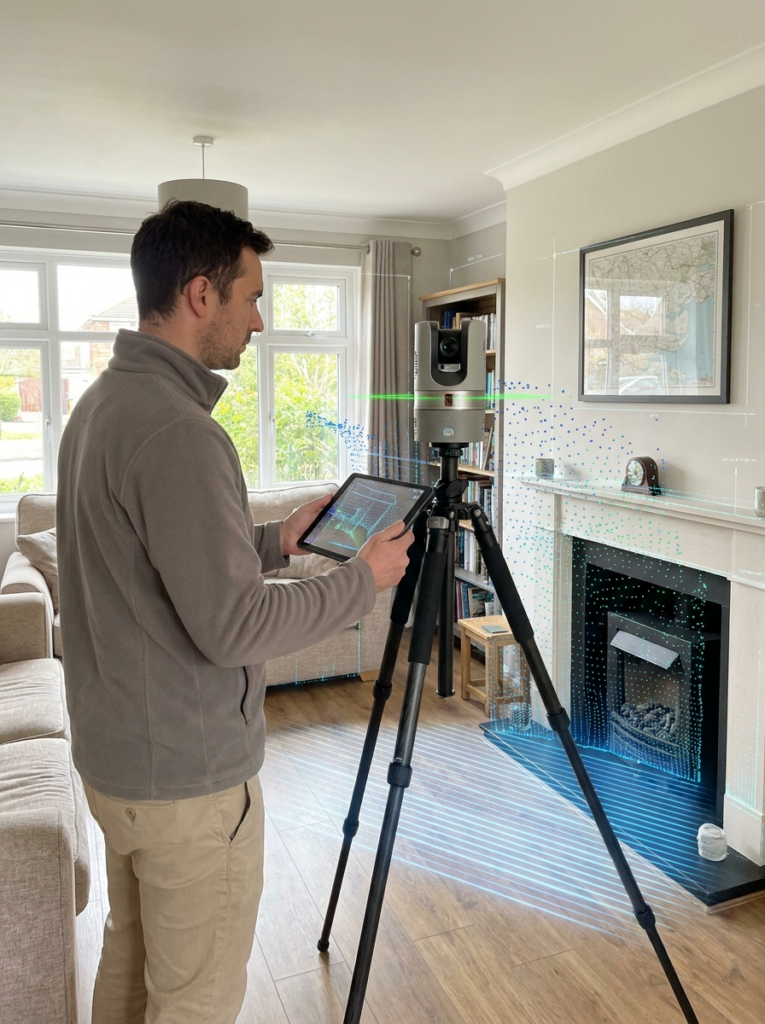

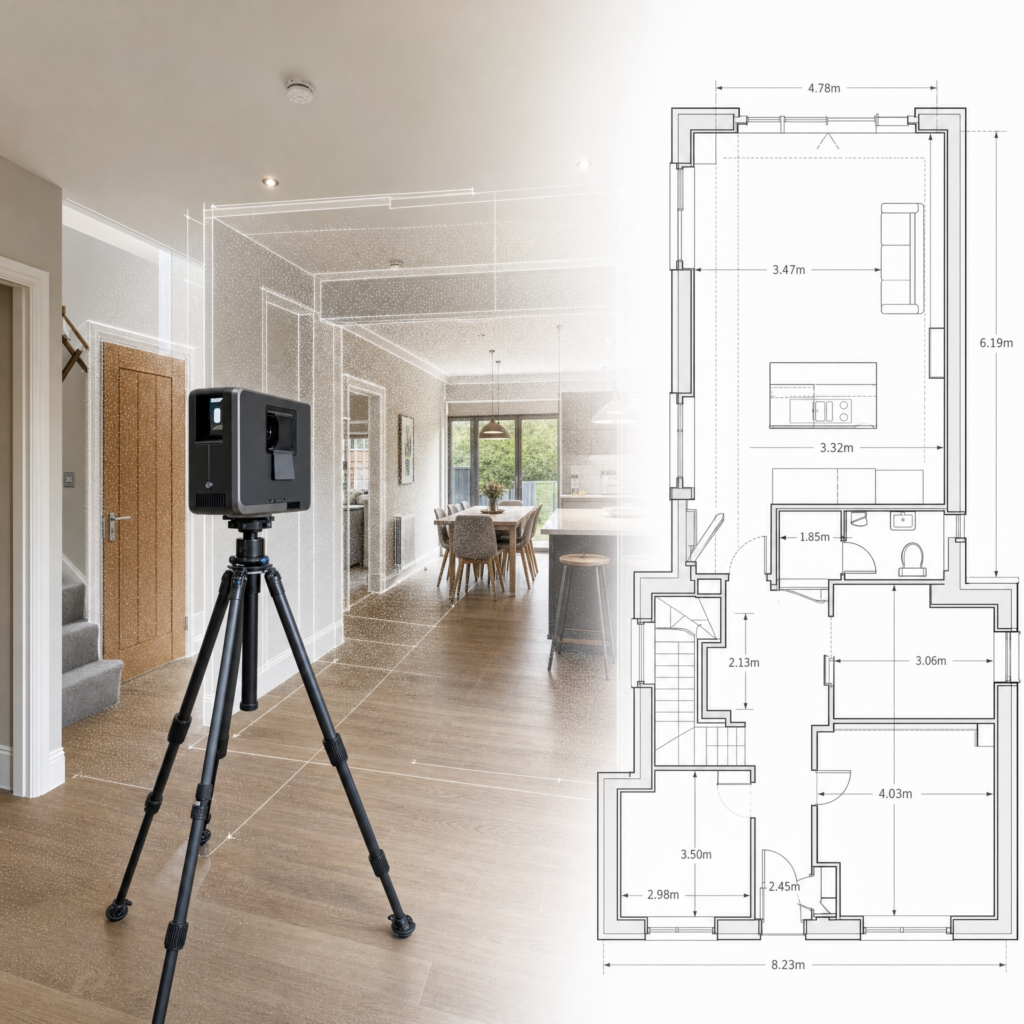

LiDAR Measured Surveys
Ideal for capturing accurate internal layouts and building dimensions.

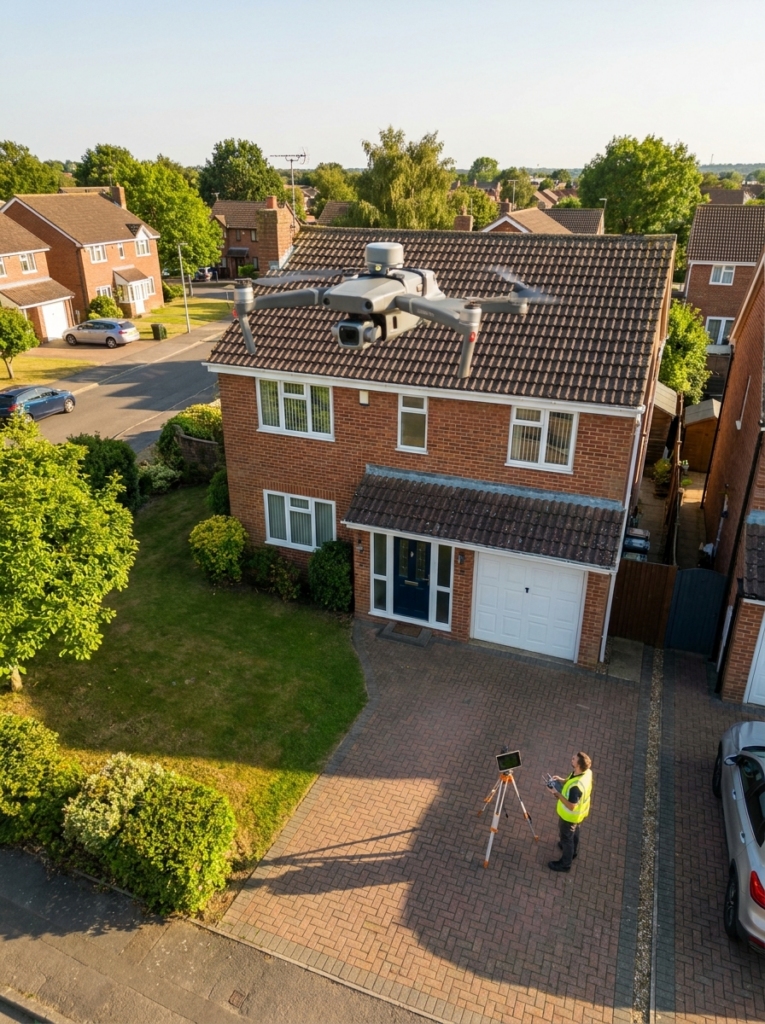

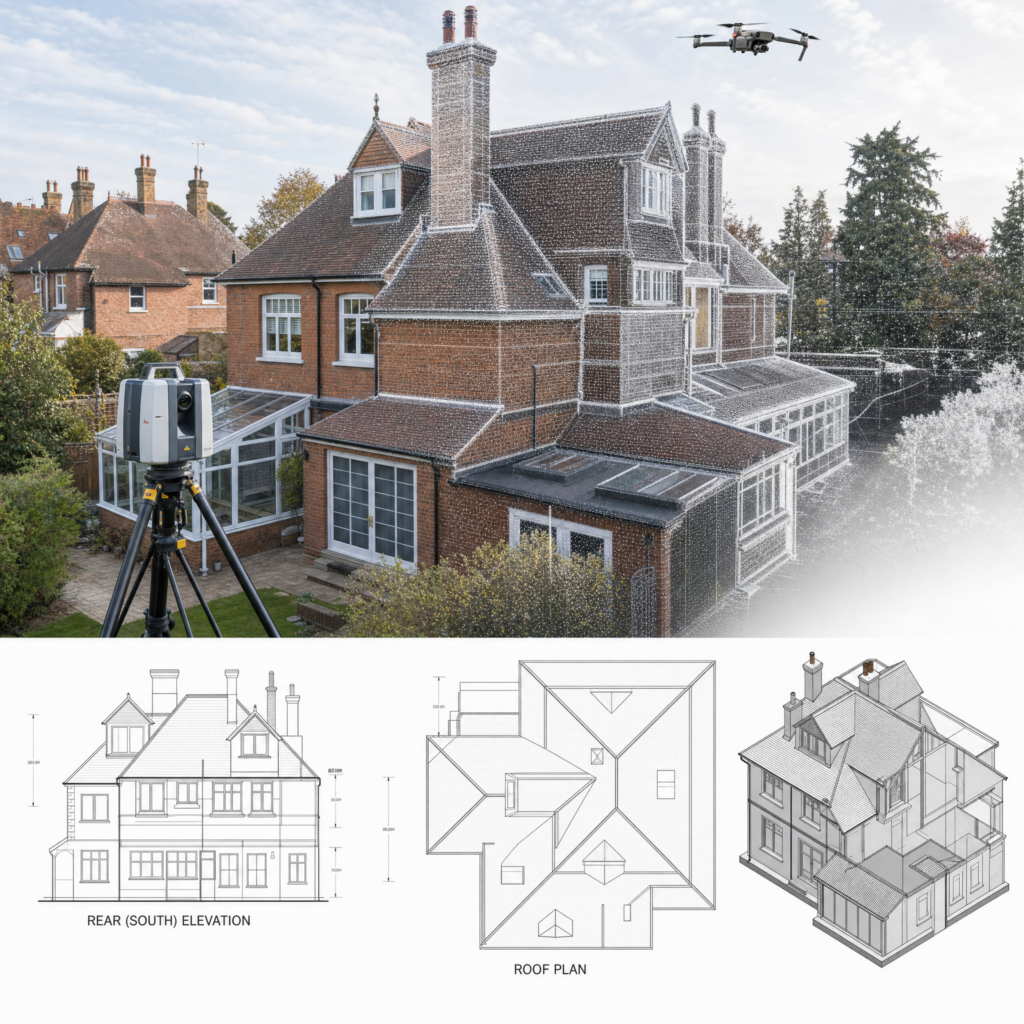

Drone Surveys
Useful for elevations, roofs and harder-to-access areas where visual accuracy matters.

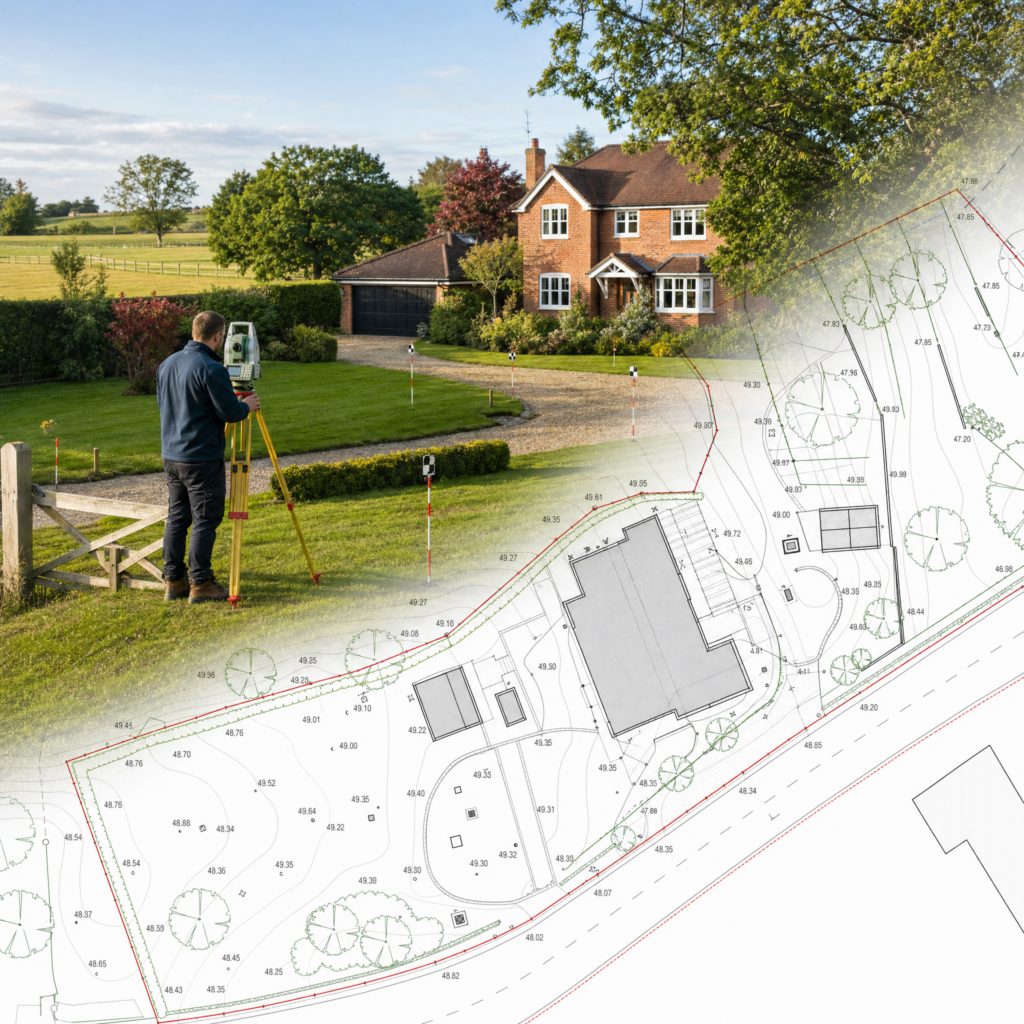

Topographical Surveys
Helpful where external layout, site features, boundaries and levels need to be understood clearly.
Our Process for Land Registry Compliant Plans Benfleet
1. We Understand What Is Needed
We review the request and establish what type of plan is required.
2. We Gather the Right Information
We work from existing documents and title information, or carry out LiDAR, drone or topographical surveys where greater site accuracy is needed.
3. We Prepare the Plan
We prepare the drawing clearly and professionally, designed to support the intended Land Registry-related application.
4. Fast Delivery
In many cases, we issue the completed fixed fee plan in as little as 24 hours after survey.
Why Benfleet Clients Choose Us for Land Registry Compliant Plans
Fixed Fees Agreed Upfront
No hidden extras. No vague pricing. No surprises later.
Fast Turnaround
Fixed fee Land Registry plans in as little as 24 hours after survey.
Precision Matters
LiDAR, drone and topographical survey data where required — no guesswork.
Plans Prepared Properly
Clear, accurate plan preparation designed to support the relevant application.
Suitable for Professional Use
Land Registry plans prepared for Benfleet property owners, solicitors, conveyancers, developers and professional advisers.
1,000+ Accepted Plans
A track record of plans accepted by HM Land Registry.
Covering Benfleet, South Benfleet, Thundersley, Hadleigh & Bowers Gifford
We cover Benfleet and nearby South Benfleet, Thundersley, Hadleigh and Bowers Gifford. Whether you need a lease plan for a flat or apartment, a title plan for a house or plot, or a transfer plan for part of a larger title, we prepare the drawing around the legal extent that needs to be identified.
FAQ: Land Registry Compliant Plans Benfleet
What is a Land Registry compliant plan?
It is a plan prepared to support a Land Registry-related application or transaction, with the land or property shown clearly enough for the intended purpose. HM Land Registry’s main plan preparation guidance is in Practice Guide 40, especially supplement 2.
Do I need a lease plan or a title plan?
That depends on the matter in hand. A solicitor or conveyancer will often tell you what is needed. If not, we can usually help identify the most likely plan type from the transaction details.
Can you prepare Land Registry plans in Benfleet for solicitors and conveyancers?
Yes. We prepare lease plans, title plans, transfer plans and related drawings for property owners and professionals dealing with transactions and registration matters in Benfleet.
Can you survey the property in Benfleet as well?
Yes. Where needed, we support plan preparation with LiDAR measured surveys, drone surveys and topographical survey data.
How much do Land Registry compliant plans cost?
We provide fixed fee pricing, agreed upfront before work starts.
How quickly can you turn a Land Registry plan around?
In many cases, we can prepare fixed fee Land Registry plans in as little as 24 hours after survey.
Can you work from existing plans?
Yes, where the existing drawings provide a reliable enough base for the transaction. If they do not, we can arrange a measured survey and prepare fresh drawing information.
What can be shown on the plan?
Depending on the matter, the plan can show the demised premises, title extent, parking, gardens, stores, access routes, common parts, rights of way and other relevant land or spaces.
Looking for Land Registry Compliant Plans in Benfleet?
Lease plans, title plans and transfer plans for Benfleet property — prepared clearly, on a fixed fee basis, supported by LiDAR, drone and topographical survey data where required. Delivered in as little as 24 hours after survey.
