Fixed Fee Land Registry Compliant Plans Ashford
If you need Land Registry compliant plans in Ashford, you do not want guesswork or delays. You want the right plan, prepared properly, first time.
At Surv Design Associates, we prepare HM Land Registry compliant lease plans, title plans, transfer plans and conveyancing plans for property owners, solicitors, conveyancers, landlords, leaseholders, freeholders, developers and agents across Ashford and nearby areas including Kennington, Willesborough, Charing.
Where needed, we support the process with LiDAR measured surveys, drone surveys and topographical survey data to help ensure accuracy from the outset. And because these matters are often time-sensitive, we can produce fixed fee Land Registry plans in as little as 24 hours after our survey.
1,000+ Accepted Plans
(Because HM Land Registry Compliance Isn't Guesswork)
Avoid rejections and last-minute delays — our plans are drawn to current HMLR guidance, clearly edged and scaled, and delivered fast as solicitor-ready PDFs.
Avoid Delays. Avoid Rejections. Our 3-Step Process for Ashford
We Capture Your Property (Properly)
We carry out a LiDAR scan of your Ashford property for millimetre accuracy. In some cases, we can work directly from existing floor plans you already have.
We Produce Your Compliant Plan

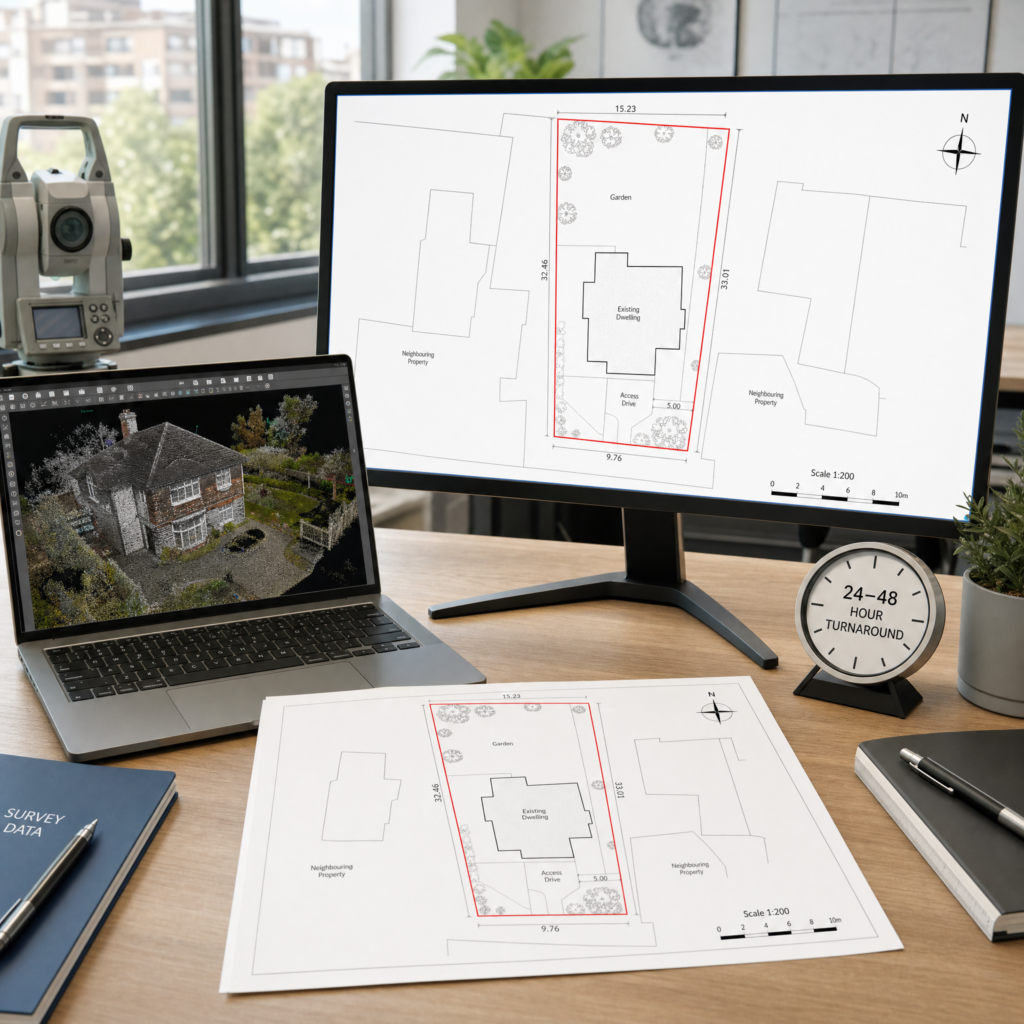

Within 24–48 hours of the scan, we deliver a Land Registry compliant plan that meets every requirement — clear, accurate, and ready to submit.

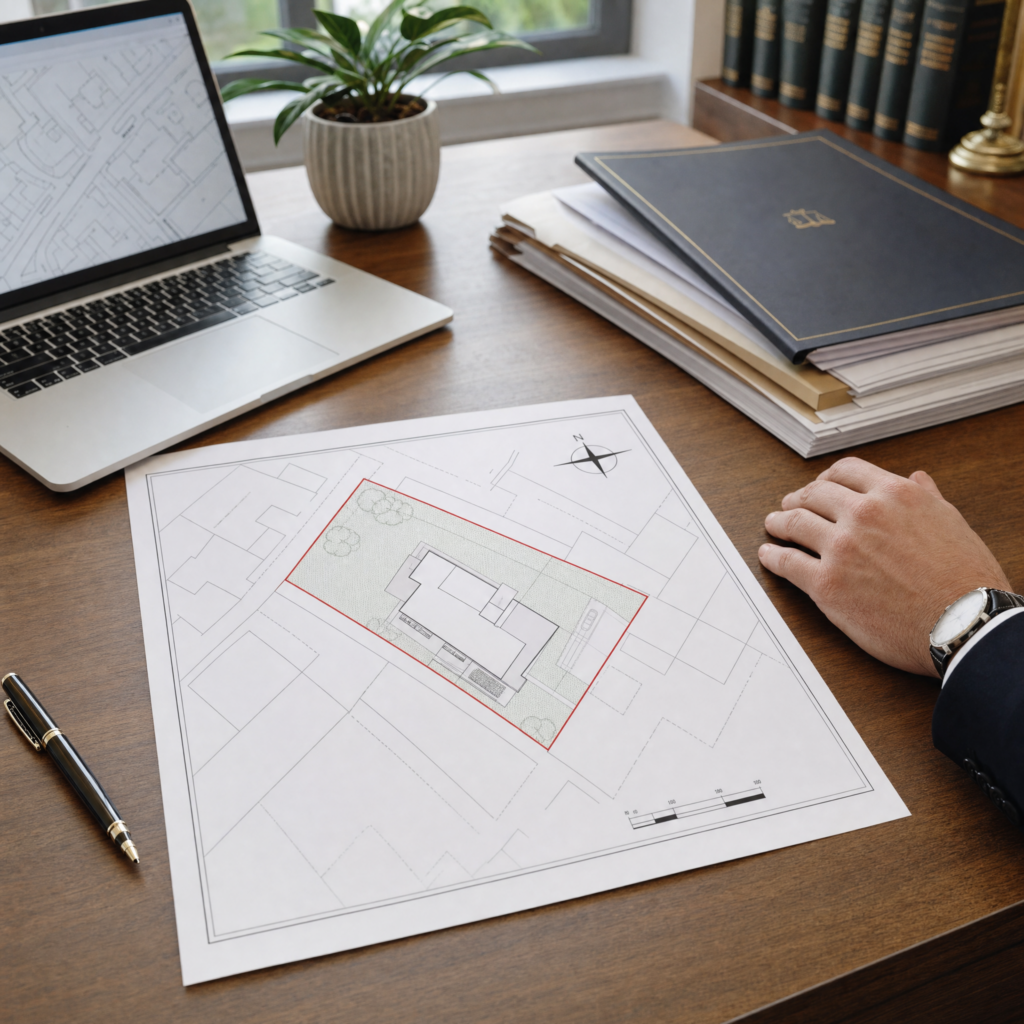

Your Solicitor Submits. You Relax.
We pass the finished plan to your solicitor, who submits it to HM Land Registry. With over 1,000 approvals under our belt, you can be confident yours will be next.
What Is a Land Registry Compliant Plan?
A plan that follows HM Land Registry (HMLR) guidance on scale, orientation, colouring and clarity so the legal extent of property can be recorded unambiguously.
Lease Plan
A lease plan defines the demised premises within a building or estate and is referenced in the lease. It shows the extent of the leased area, common parts and any associated rights.
Title Plan
A title plan illustrates the registered title extent for freehold or leasehold ownership and supports the property description in the HM Land Registry register.
What Your Plan Will Show

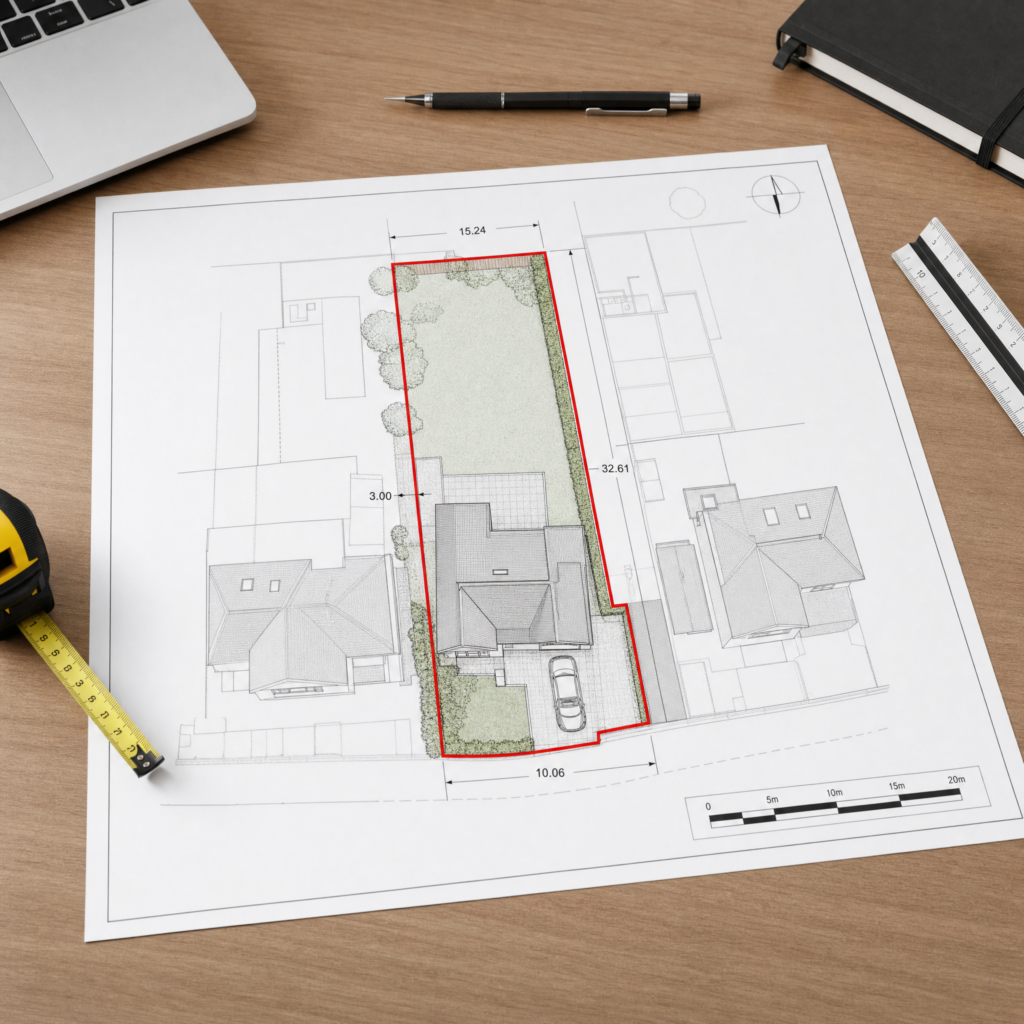

Boundaries & Scale
A clearly edged boundary at an appropriate scale (typically 1:100 to 1:500 for site plans and 1:100 or 1:200 for internal layouts) with dimensions where needed.
Demised Area, Common Parts & Rights
Colour-coded areas for demised premises, common parts, rights of way and areas reserved. Notes explain any shared structures or retained parts.

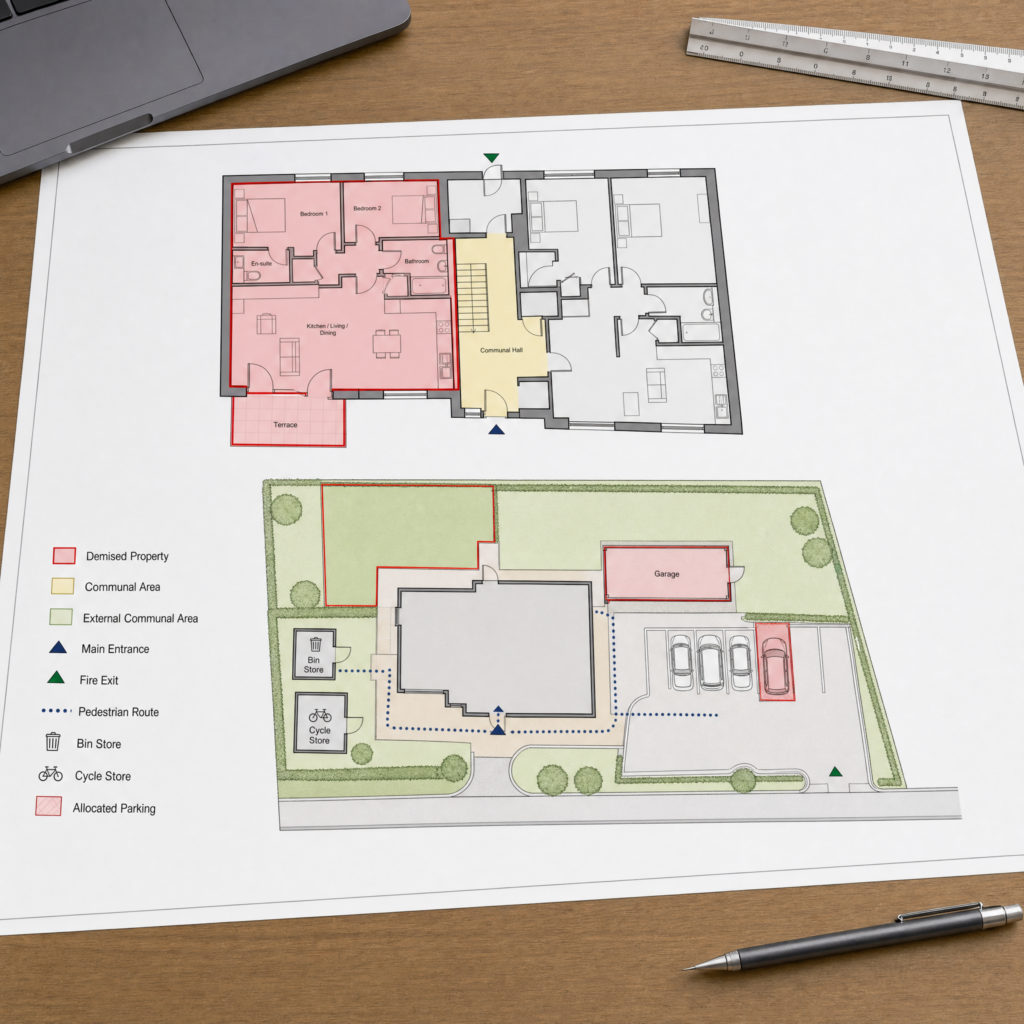

Access, Parking & Outbuildings
Marked entrances/exits, bin/bike stores, parking bays, garages and external spaces within or outside the demise.
When You Need a Land Registry Compliant Plan
New Leases & Sales
Required for granting or varying leases, especially where the extent differs from existing records.
Transfers of Part & Split Titles
Needed when dividing land or buildings into multiple titles or altering boundaries.
Resolving Boundary Questions
Helpful evidence in boundary clarifications and deed updates.
What Types of Land Registry Plans Do We Prepare in Ashford?
Lease Plans — HM Land Registry compliant lease plans Ashford for new leases, lease variations and related property matters.
Title Plans — HM Land Registry compliant title plans Ashford where a clear plan is needed to identify the land affected.
Transfer Plans — for transfers of part, boundary-related transactions and other registration matters.
Plans for Lease Variations — updated plans to reflect a revised layout or extent.
Plans for Property Splits or Part Transfers — clear supporting plans where land or part of a building is separated from a wider title.

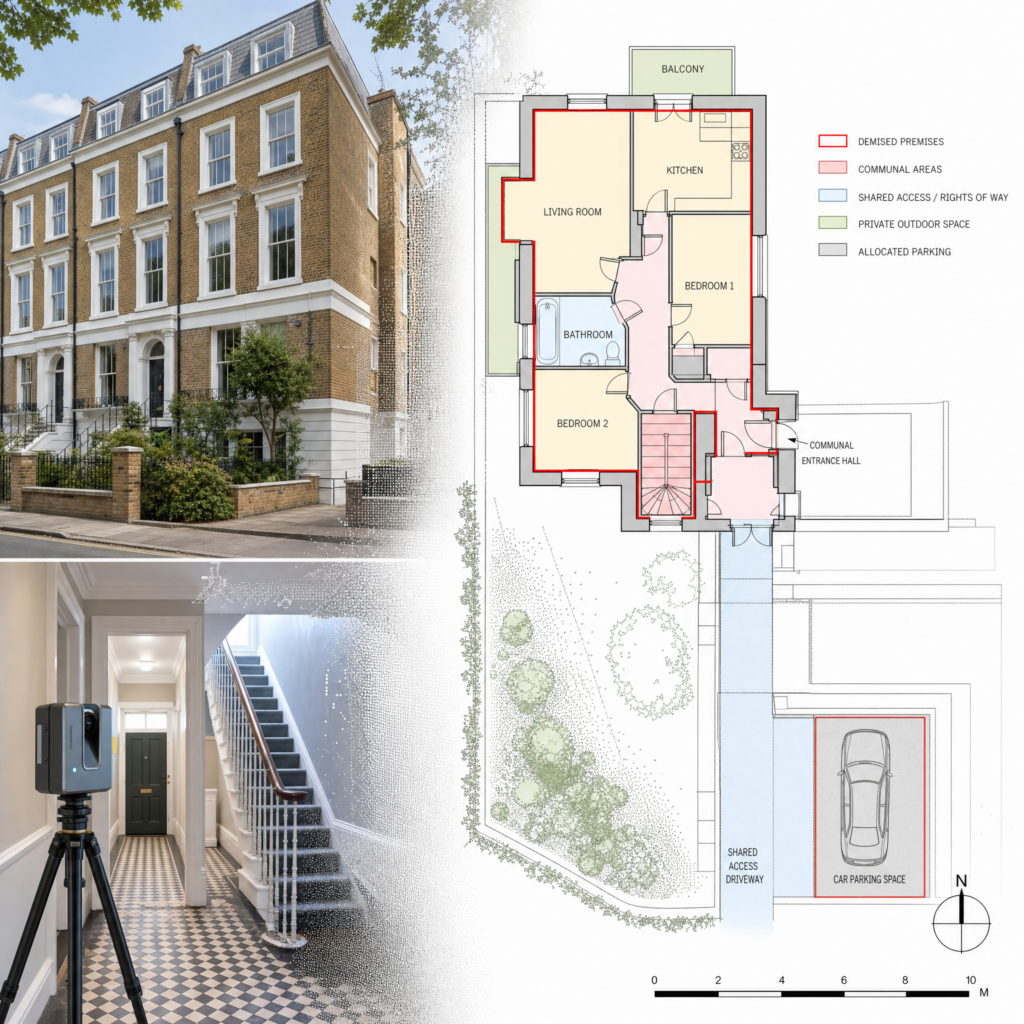

HM Land Registry Compliant Lease Plans Ashford
Lease plans are one of the most common requests we deal with in Ashford. They are often needed for:
- new leases
- lease extensions
- lease variations
- sales of leasehold interests
- registration of leasehold property
HM Land Registry says you do not usually need to register leasehold land or property if there are 7 years or less on the lease, and leases granted for a term of more than seven years are compulsorily registrable.
Where the layout, extent or access arrangement needs to be captured properly, we support the process with LiDAR measured survey data to help ensure the finished plan reflects the property accurately.

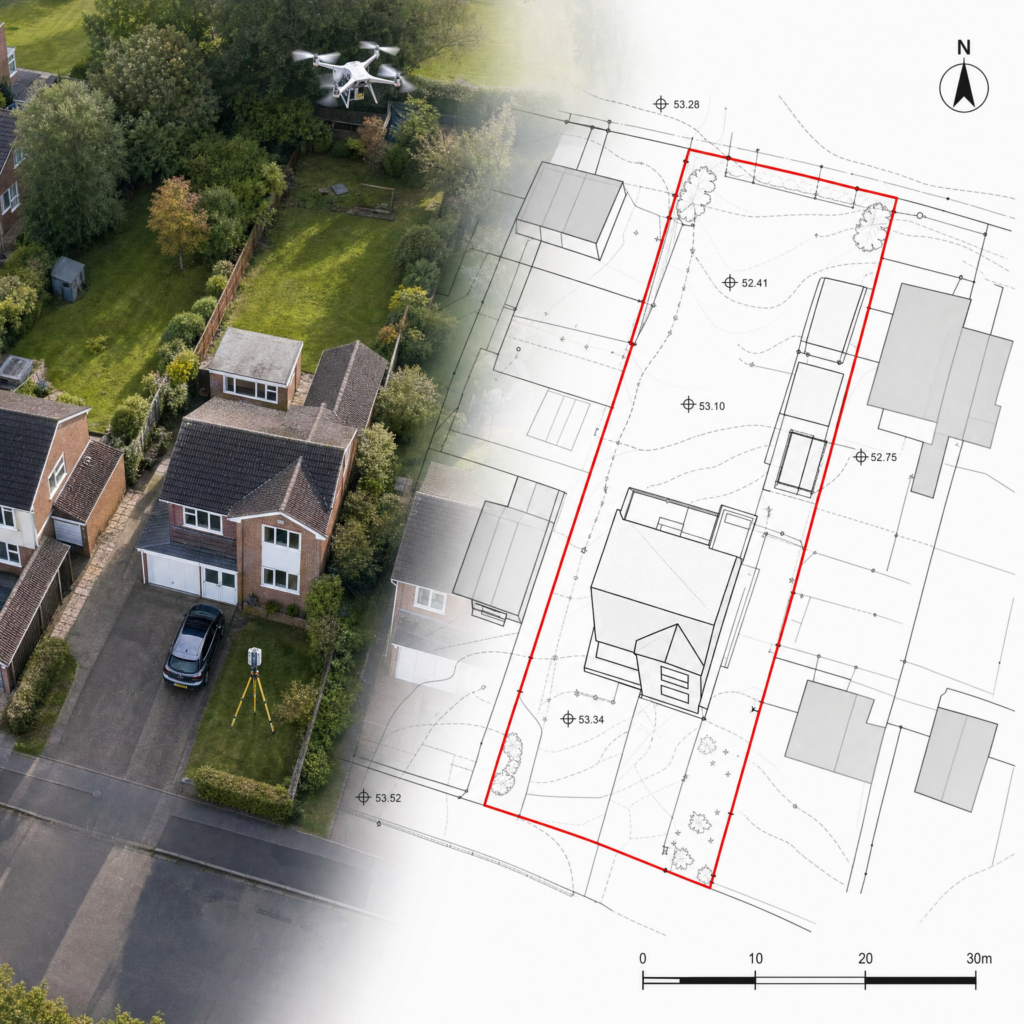

HM Land Registry Compliant Title Plans Ashford
HM Land Registry says the purpose of the title plan is to support the property description in the register by providing a graphic representation and identifying the general extent of the land in a registered title.
In practice, title plans are needed where land must be clearly identified in connection with a registration matter, transfer, boundary issue or related legal process in Ashford.
Where required, we support plan preparation with LiDAR measured surveys, drone surveys for roofs and elevations, and topographical survey information — so the finished drawing is based on reliable site information, not assumption.
Precision at Every Stage
Not all Land Registry plans are prepared from the same standard of information. Where a job requires greater certainty, we support plan preparation with measured survey technology.

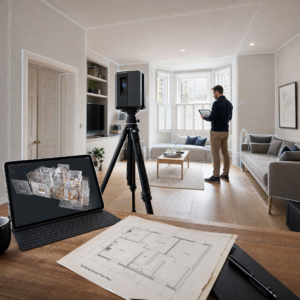

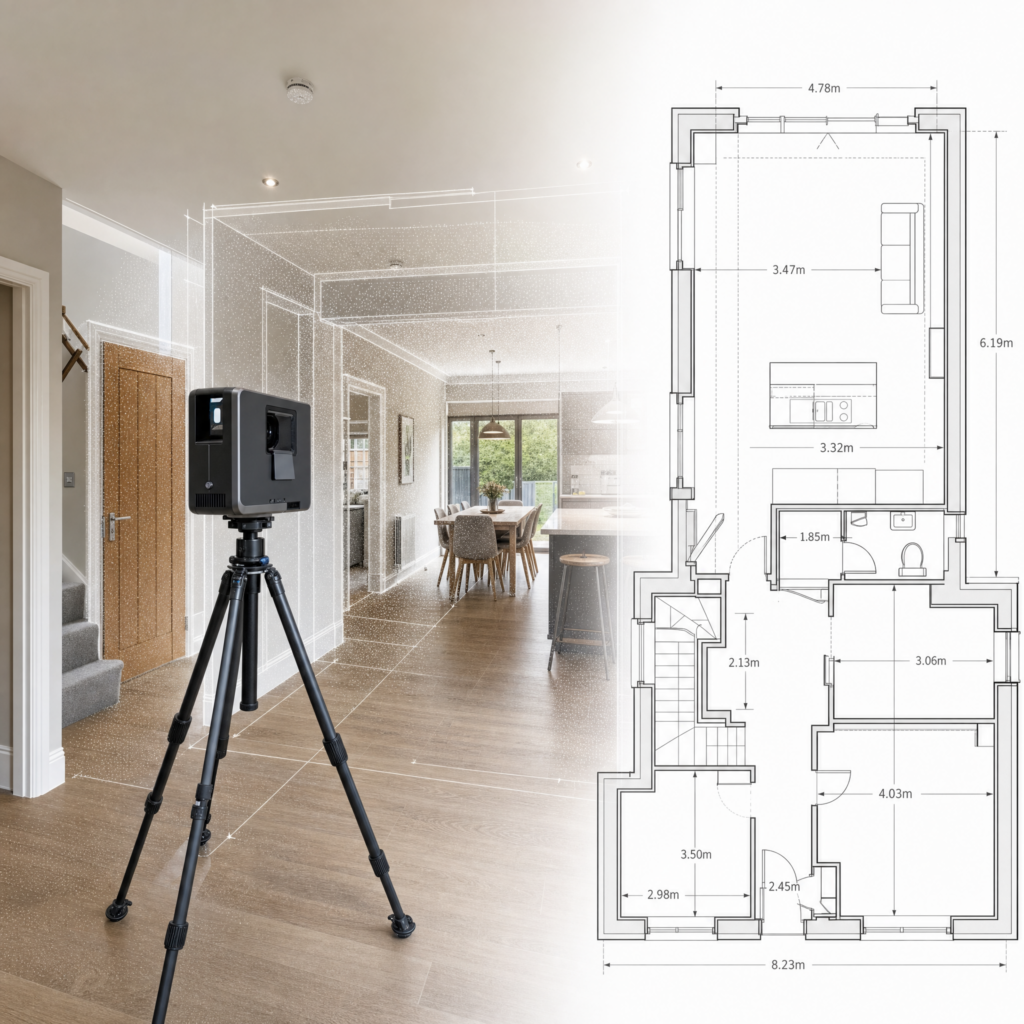

LiDAR Measured Surveys
Ideal for capturing accurate internal layouts and building dimensions.

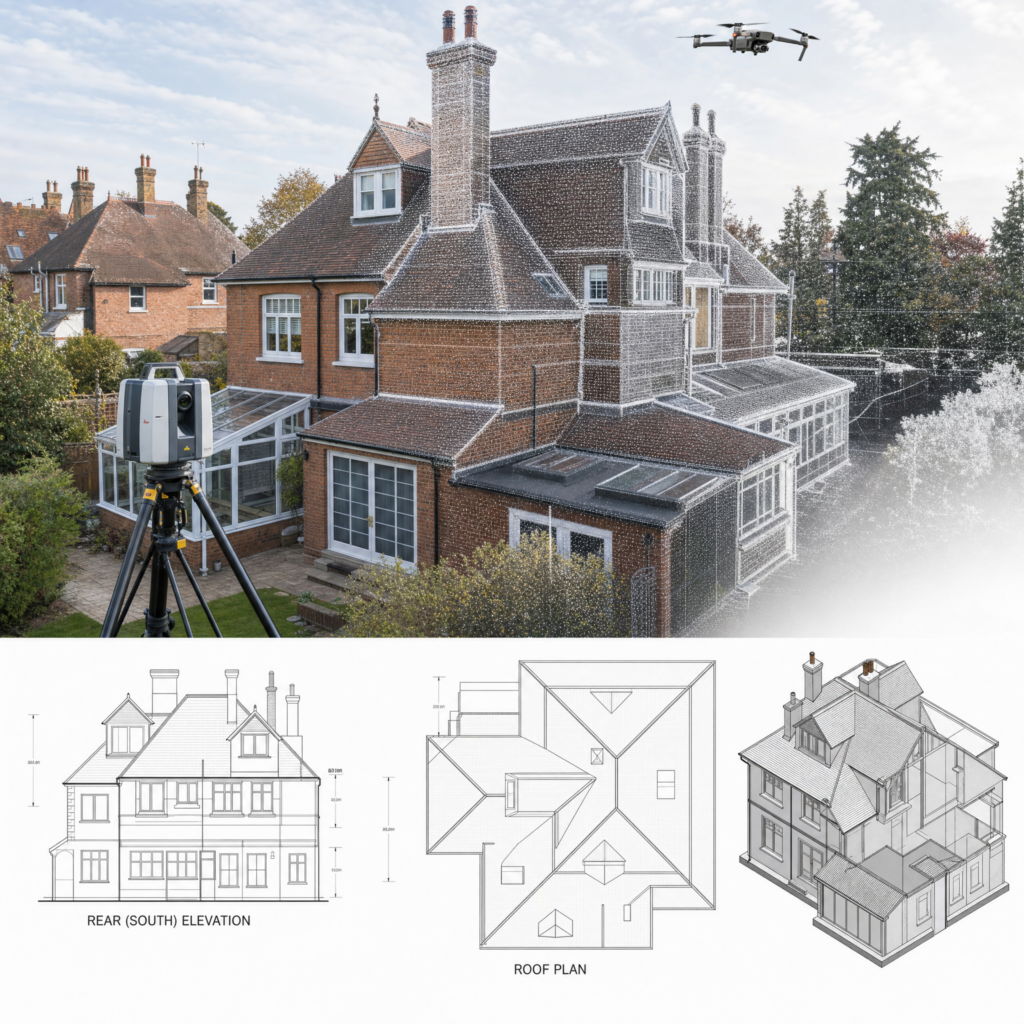

Drone Surveys
Useful for elevations, roofs and harder-to-access areas where visual accuracy matters.

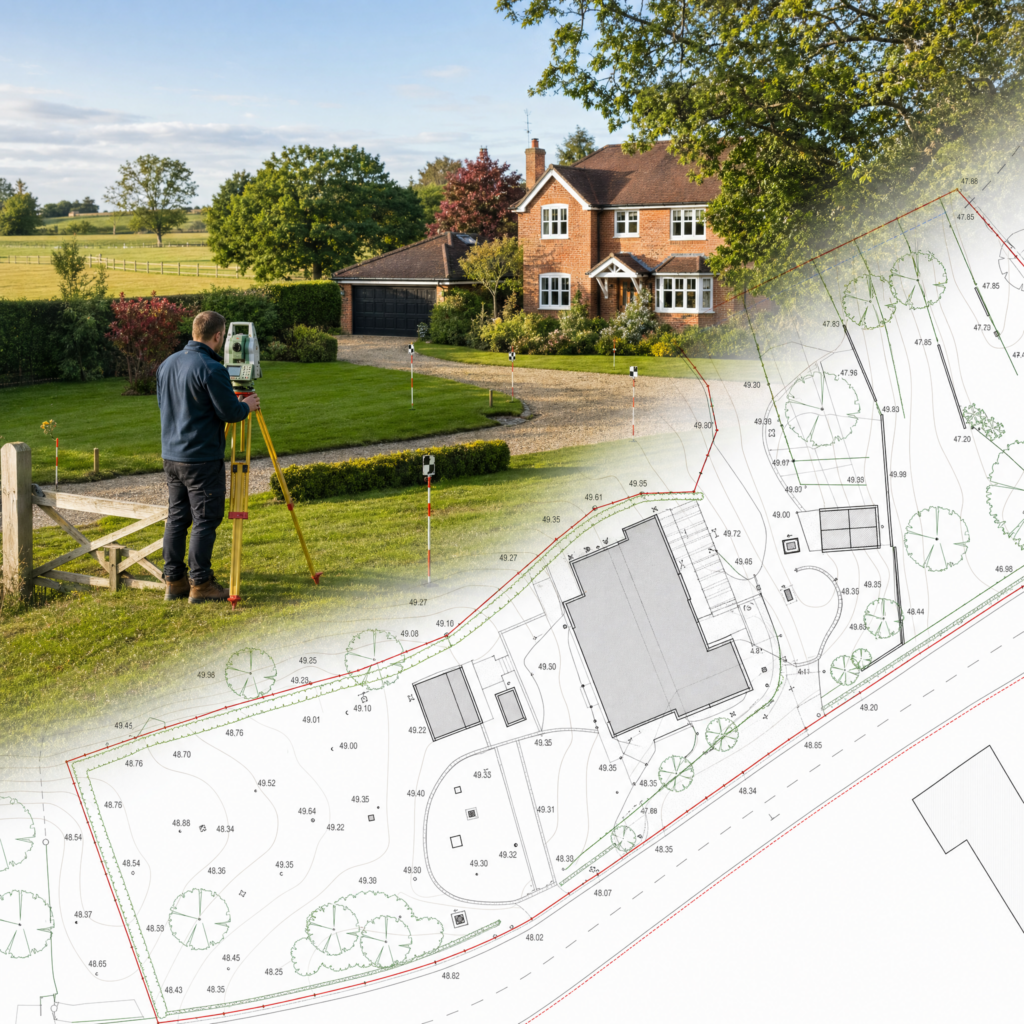

Topographical Surveys
Helpful where external layout, site features, boundaries and levels need to be understood clearly.
Our Process for Land Registry Compliant Plans Ashford
1. We Understand What Is Needed
We review the request and establish what type of plan is required.
2. We Gather the Right Information
We work from existing documents and title information, or carry out LiDAR, drone or topographical surveys where greater site accuracy is needed.
3. We Prepare the Plan
We prepare the drawing clearly and professionally, designed to support the intended Land Registry-related application.
4. Fast Delivery
In many cases, we issue the completed fixed fee plan in as little as 24 hours after survey.
Why Clients Choose Us for Land Registry Compliant Plans Ashford
Fixed Fees Agreed Upfront
No hidden extras. No vague pricing. No surprises later.
Fast Turnaround
Fixed fee Land Registry plans in as little as 24 hours after survey.
Precision Matters
LiDAR, drone and topographical survey data where required — no guesswork.
Plans Prepared Properly
Clear, accurate plan preparation designed to support the relevant application.
Suitable for Professional Use
Plans regularly prepared for solicitors, conveyancers, developers and property professionals in Ashford.
1,000+ Accepted Plans
A track record of plans accepted by HM Land Registry.
Serving Ashford & Surrounding Areas
We provide Land Registry compliant plans across Ashford and nearby areas including Kennington, Willesborough, Charing. Whether it’s a flat, a freehold house, a split title or a transfer of part — the priority is the same: the right plan, prepared clearly, accurately and without delay.
FAQ: Land Registry Compliant Plans Ashford
What is a Land Registry compliant plan?
It is a plan prepared to support a Land Registry-related application or transaction, with the land or property shown clearly enough for the intended purpose. HM Land Registry’s main plan preparation guidance is in Practice Guide 40, especially supplement 2.
Do I need a lease plan or a title plan?
That depends on the matter in hand. A solicitor or conveyancer will often tell you what is needed. If not, we can usually help identify the most likely plan type from the transaction details.
What is a lease plan?
A lease plan is a plan used to identify the premises included within a lease. It is commonly needed for new leases, leasehold registration, and lease-related changes.
What is a title plan?
HM Land Registry says the title plan supports the property description in the register and shows the general extent of the land in the registered title.
Can you prepare plans for solicitors and conveyancers?
Yes. We regularly prepare plans for property owners and for professionals involved in transactions and registration matters.
How much do Land Registry compliant plans cost?
We provide fixed fee pricing, agreed upfront before work starts.
How quickly can you turn Land Registry plans around?
In many cases, we can prepare fixed fee Land Registry plans in as little as 24 hours after survey.
Do you offer measured surveys as well?
Yes. Where needed, we support plan preparation with LiDAR measured surveys, drone surveys and topographical survey data.
Looking for Land Registry Compliant Plans in Ashford?
Lease plans, title plans, transfer plans — prepared clearly, on a fixed fee basis, supported by LiDAR, drone and topographical survey data where required. Delivered in as little as 24 hours after survey.
